Curaflam® XS Pro
- for flammable pipes
- Trades: waste water, rainwater, drinking water, gas, heating, cooling, compressed air, vacuum cleaner pipes, pneumatic tubes
Curaflam® XS Pro
toegevoegd aan
.
Curaflam® XS Pro
verwijderd van
.
Technische details
INSTALLATION CONDITIONS
- Approved zero clearance in the system and to external penetration seals (e.g. Curaflam® Rollit ISO Pro, Conlit system, shut-off device in accordance with DIN 18017 [ventilation], etc.)
- Penetration sealing on sloping pipes, sleeves, for 2 x 45° bends with plug-in or E-sleeves and metal clamp connectors
- on both sides in front of walls made of aerated concrete, reinforced concrete, concrete, masonry and lightweight partition walls with a thickness ≥ 100 mm
- on one side under or in ceilings made of aerated concrete, reinforced concrete, concrete with a thickness ≥ 150 mm
- approved for penetration sealing in fire-retardant wooden beam ceilings ≥ 150 mm
Toepassingsgebieden
- for flammable pipes
- Trades: waste water, rainwater, drinking water, gas, heating, cooling, compressed air, vacuum cleaner pipes, pneumatic tubes
Productvoordelen
FOR THE INSULATION OF PIPES MADE OF
- PVC, PP, PE-HD, LDPE, PB, PE-X, ABS
- Sound-insulating waste water pipes
- Plastic composite pipes with aluminum insert Ø ≤ 110 mm
- Aquatherm pipes Ø ≤ 110 mm
APPROVED FOR INSULATION
- PE sound insulation strips 0 - 5 mm
- Synthetic rubber 9 - 43 mm
- PE flexible foam hoses 9 - 25 mm
Curaflam®
Please refer to the general type approval for detailed information regarding the areas of application and design regulations.
Media
Overslaan
-

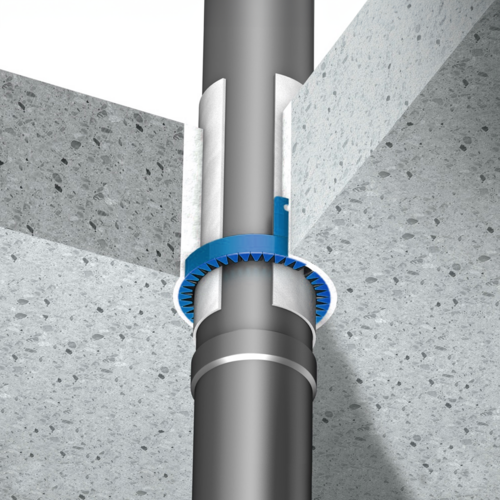

Inbouwsituatie
-

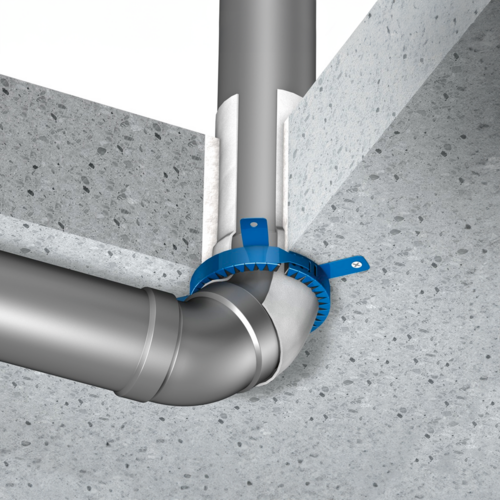

Inbouwsituatie
-

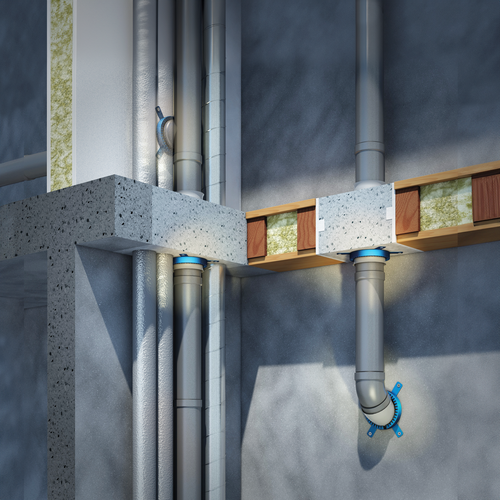

Inbouwsituatie
